Закрытый цинковый сокет (муфта канатная)
Для встраивания в состав.
Поверхность: Оцинкованный
Запас прочности: 5: 1

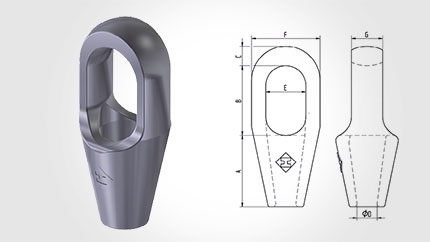

| Арт. | Канат, мм | В | С | Г ?? Г | Е | F | г | MBL тонн | Рабочая нагрузка, т | Вес, кг | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G006694210 | 8-10 | 58,0 | 52,5 | 14,0 | 11,0 | 24,0 | 43,0 | 16,0 | 12 | 2,4 | 1 |
| G006694213 | 11-13 | 63,5 | 59,0 | 17,5 | 14,0 | 28,5 | 51,0 | 22,0 | 20 | 4,0 | 0.8 |
| G006694216 | 14-16 | 76,5 | 65,0 | 20,5 | 17,5 | 35,0 | 66,5 | 25,4 | 25 | 5,0 | 1.4 |
| G006694219 | 18-19 | 90,0 | 75,0 | 26,0 | 21,0 | 42,0 | 75,0 | 31,0 | 40 | 8,0 | 2,1 |
| G006694222 | 20-22 | 101,0 | 90,0 | 33,0 | 24,0 | 47,0 | 92,0 | 38,0 | 45 | 9,0 | 4 |
| G006694227 | 23-26 | 114,0 | 103,0 | 36,0 | 28,0 | 57,0 | 106,0 | 45,0 | 70 | 14,0 | 6,5 |
| G006694230 | 27-30 | 127,0 | 116,0 | 39,0 | 32,0 | 63,0 | 114,0 | 51,0 | 100 | 20,0 | 7,5 |
| G006694236 | 31-36 | 139,0 | 130,0 | 44,0 | 38,0 | 70,0 | 128,0 | 58,0 | 125 | 25,0 | 11 |
| G006694239 | 37-39 | 152,0 | 155,0 | 51,0 | 41,0 | 79,0 | 137,0 | 64,0 | 150 | 30,0 | 13 |
| G006694242 | 40-42 | 165,0 | 171,0 | 54,0 | 44,0 | 82,0 | 146,0 | 70,0 | 200 | 40,0 | 17 |
| G006694248 | 43-48 | 190,0 | 198,0 | 56,0 | 51,0 | 89,0 | 171,0 | 77,0 | 260 | 52,0 | 24 |
| G006694254 | 49-54 | 216,0 | 224,0 | 62,0 | 57,0 | 98,0 | 194,0 | 84,0 | 280 | 56,0 | 36,5 |
| G006694260 | 55-60 | 228,0 | 247,0 | 73,0 | 65,0 | 110,0 | 216,0 | 94,0 | 360 | 72,0 | 50 |
